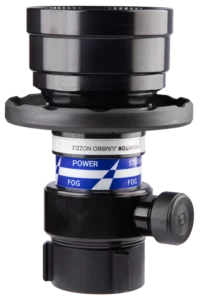

RAITOOK POWER

FIXED MONITOR JUMMBO NOZZLE

Model: Power

Fog and straight stram patterns easily changed with lever control
Constrution: Black Aluminium
Inlet size: One way flanged 2-1/2″
Standard: DN65
Flow: 350 GPM @7 Bar for AFFF 3%
Complete with wired & transparent PVC foam pick up tube

Description

Fixed industrial monitor and deck gun. This revolutionary master stream nozzle has its own built-in foam eductor so it can be used for either water application or foam application. This foam nozzle is ideal for those situations where greater application rates are necessary for containment and/or extinguishment of large spills while using AFFF; or for containment and/or extinguishment of structure fires while using class A Foam.

Performance curve & the effective reach based on 350 GPM

POWER fixed MANITOR for Foam FLUID
Material: Aluminium	W(kg): 15.5
HORIZENTAL: 360°	VERTICAL: +50° To -15°

Applications

• For flammable liquid fires in storage tanks, on barges, at loading terminals, petroleum complexes, craft hangars and on numerous spills.
