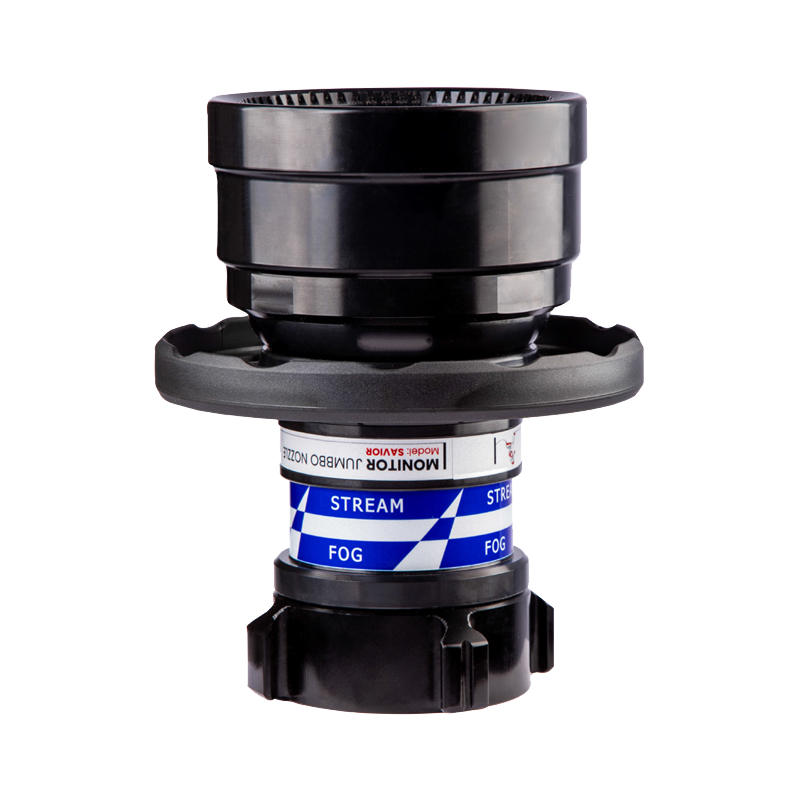

RAITOOK SAVIOR

FIXED MONITOR JUMMBO NOZZLE

Model: Savior

Constrution: Black Drawn tube Aluminium
Inlet size: One way flanged 2-1/2″
Standard: DN65
Flow: 750 GPM @7 Bar
Fog and straight stram
The effective reach approx.63 meters @7 Bar
45° in jet and 45m in narrow fog

Description

It is designed to industrial firefighting or deck gun. Durable light weight alloy drawn-tube construction. Single gallon with round shape light weight controller. Excellent for AFFF application as well. This nozzle is a constant flow nozzle — straight stream, narrow fog (30°) or wide fog (120°). It is flow-efficient with a fully machined waterway for excellent stream quality. It comes with large handles which allow for easy stream pattern management.

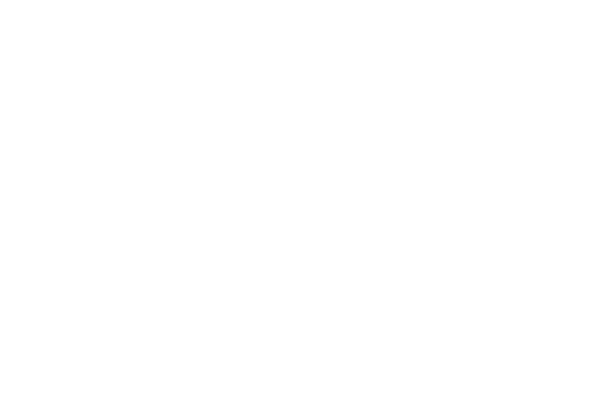

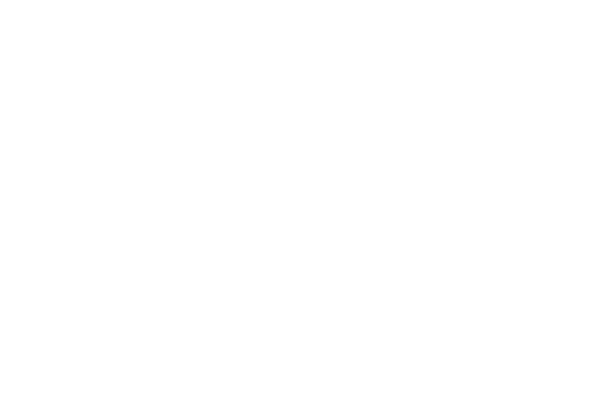

Performance curve & the effective reach based on 750 GPM

SAVIOR fixed MANITOR for WATER FLUID
Material: Aluminium	W(kg): 15.5
HORIZENTAL: 360°	VERTICAL: +50° To -15°

Applications

• For total flooding applications, on the outdoor hydrant, fire trucks, mines, tunnels and etc.
